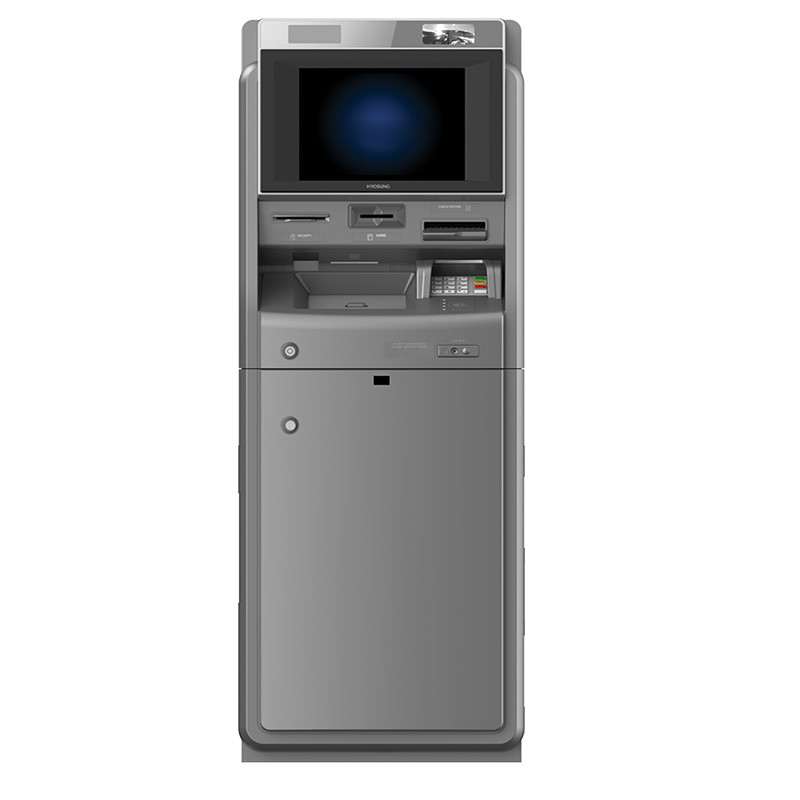

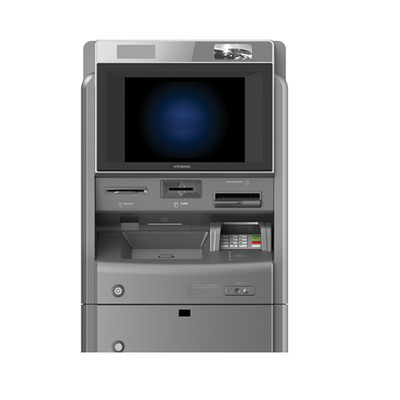

Cash Deposit Machine 17 Inch Touch Screen Cash Dispenser Machine Kiosk

Cash Deposit Machine 17 Inch Touch Screen Cash Dispenser Machine Kiosk

  • Cash Deposit Machine 17 Inch Touch Screen Cash Dispenser Machine Kiosk
  • Cash Deposit Machine 17 Inch Touch Screen Cash Dispenser Machine Kiosk
Cash Deposit Machine 17 Inch Touch Screen Cash Dispenser Machine Kiosk
Product Details:
Place of Origin: Guangdong, China
Brand Name: HE
Certification: CE/CCC/FCC/ROHS/ISO9001
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Standard Export Packing (Foam and Wooden Crate)
Delivery Time: 15-20 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1000 pieces per month
Contact Now
All Products
Vending Machine Kiosk (109)
Self Service Kiosk (55)
ATM Cash Machine (160)
Cash Deposit Machine (65)
Self Service POS Kiosk (23)
Self Payment Kiosk (27)
Self Ordering Kiosk (52)
Ticket Kiosk Machine (22)
Currency Exchange Kiosk (10)
Government Kiosk (17)
Video Teller Machine (15)
Bitcoin Kiosk (9)
ATM Spare Parts (167)
Kiosk Parts (17)
Banking Machine Module (116)
Detailed Product Description
Name: Cash Recycling Machine Packaging: Customized
Graphic/ Photo: Customized Deviation Of Erro: ±<1.0%
Ensurance: 1 Year Working Time: The Whole Day
Key Board: PCI EPP Service Life: Anti-fishing Design
Specification: Customized Function: Standard
Dispenser: Wincor Nature: Manufactured By Ourselves
Special: Support For Intelligent Banks
Highlight:

17 Inch Touch Screen Cash Dispenser

,

Customized Size Cash Dispenser Kiosk

Product Description



This payment kiosk is made of high quality cold-rolled steel sheet. It's of high performance industrial PC system and high-tech touch screen technology. It's in unique design, elegant appearance, easy to operate. What's more, we can customize the hardware of the machine to meet customers' request.



Components Specification
PC (Customizable) CPU G2020 / J3160 / I3 / I5 / I7
RAM 2G /4G / 8G
HDD / SSD 500G / 128G
Interface RS-232 Ports; USB Ports; 10/100M Net Port; Integrated Net Card; Sound Card ; WIFI
Touch Screen Screen Size 15'' /17" /19" (optional from 10.1" to 82")
Screen Type SAW / IR / Capacitive
Monitor Screen Size 15'' /17" /19" (optional from 10.1" to 82")
Brightness 250/300 /1000 cd/m2
Contrast 1000:1 / others
Resolution 1024X768/ 1280x1024 /1920x1080 / others
Kiosk Cabinet Material Cold-rolled steel with1.5mm / 2.0 mm thickness
Coating Car painting technology
Feature Easy service access through front and back
Color or Logo Customizable
Parts Multimedia speakers ,Internal ventilation system
Card Reader Card Type Magcard, IC Card, RF Card, Mifare Card, UL Card
Interface RS232 / USB
Encrypted Pin Pad Key Life Span 2,000,000 cycles
Key Force 2-3N
Cash Acceptor Brand Cash Code / MEI / ITL / JCM
Validation Rate High than 96%
Capacity 600 / 1000 / 1500 /2000 / 2200 notes
Printer Brand Epson / Custom / Masung
Width of Paper 58mm / 80mm / 112mm
Printing Speed 150 mm/s
Interface RS232 / USB
Cash dispenser Brand Fujitsu / CDM
Cassettes 1-6 cassettes
Power Supply AC Input Voltage 100~240V/AC
Optional Card dispenser / Card printer /Camera / Passport scanner / Fingerprint reader / UPS /Coin acceptor / Cash recycler / Barcode Sanner
Package Safe packing with bubble foam, in wooden case
processing module Hopper:500 notes
Stacker:200 notes
Reject stacker:100 notes
Processing speed:1000 notes/ mins
cash bag capacity:20,000 notes

Cassette: 4 recyclable units, 1 reject/retract unit

Capacity: 4 recyclable units support to extend to Max. 8 recyclable sub units, the recyclable unit supports Max. 3400 banknotes,

the reject unit and the retract unit support Max. 2250 banknotes.

Up to 300 banknotes per transaction, 12 banknotes/second,

OCR: Support banknote serial number recognition (opt.)
