OEM/ODM Acceptable, Manufacturer of Kiosks.
 |
| Place of Origin: | Guangdong, China |
| Minimum Order Quantity: | 1 |
|---|---|
| Packaging Details: | With standard packaging or according to customer's request |
| Delivery Time: | 15~20 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000 per month |
| Standard: | Compliant With Most Banking Standard Specifications, Including CEN/XFS, NDC, DDC, ISO8583, Etc. | OS: | Microsoft Windows 10 |
|---|---|---|---|
| CPU: | Support Intel Core I3/i5/i7 CPU | RAM: | Support Max. 16GB Memory |
| HDD: | Support Max. 1 TB Hard Disk | Communication: | RJ45, WIFI, X.25, Etc. |
| Power: | AC 220V~240V,50~60 Hz, Surge Protection, UPS(opt.) | Cassete: | 4 Recyclable Units, 1 Reject/retract Unit |
| Capacity: | 4 Recyclable Units Support To Extend To Max. 8 Recyclable Sub Units, The Recyclable Unit Supports Max. 3400 Banknotes, The Reject Unit And The Retract Unit Support Max. 2250 Banknotes. Up To 300 Banknotes Per Transaction, 12 Banknotes/second, | OCR: | Support Banknote Serial Number Recognition (opt.) |

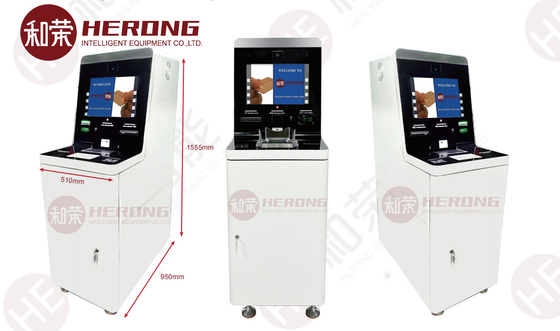

| Color: | White&black | Width: | 510mm |
| Thickness: | 950mm | Height: | 1555mm |
| Highlight: | Medium Sized Lobby CRM Money Counter,Cash Recycling Lobby CRM Money Counter,High Security Lobby CRM Money Counter |
||

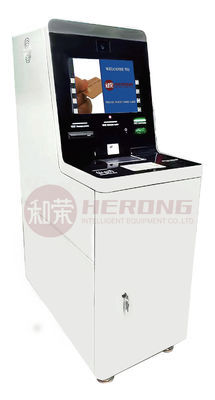

Medium Sized High Security Lobby CRM Money Counter ATM System Cash Recycling Machine C03L
Advantages:
| Dimensions | Width | 510mm |
| Height | 1555mm | |
| Thickness | 950mm | |
| Net Weight | 404kg | |
| Backing plate and carton packaging weight | 439kg | |
| Backing plate and wood packaging weight | 454kg |
Summary:
| Standard | Compliant with most banking standard specificatons, including CEN/XFS,NDC,DDC,ISO8583,etc. | |
| Security | Safe | UL 291 Level 1 Compliant |
| Lock | Mechanical combination lock | |
| Cameras | Binocular recognition camera(opt.), Ordinary facial camera(opt.), Ordinary exit slot camera(opt.), Ordinary room camera(opt.), Ordinary extra camera(opt.) |
|
| Sensors |
Shock sensor(opt.), Infrared sensor(opt.),
Smoke sensor(opt.), Light sensor(opt.)
|
|
| Others | Explosion-proof glass, PIN Pad shield, DVR(opt.) | |
| Controlling Unit | OS | Microsoft Windows 10 |
| CPU | Support Intel Core i3/i5/i7 CPU | |
| RAM | Support Max.16GB memory | |
| HDD | Support Max.1TB hard disk | |
| Communication | RJ45, WIFI, X.25, etc. | |
| Power | AC 220V~240V,50~60 Hz,Surge protection,UPS(opt) | |
| Cash Processing Unit | Cassette |
4 recyclable units, 1 reject/retract unit
|
| Capacity |
4 recyclable units support to extend to Max. 8 recycla
ble sub units, the recyclable unit supports Max. 3400 banknotes,
the reject unit and the retract unit support Max. 2250 banknotes.
Up to 300 banknotes per transaction, 12 banknotes/second,
|
|
| OCR | Support banknote serial number recognition(opt.) | |
| Customer Interface | Display |
12” TFT color LCD touch screen; Privacy filter (opt.); Sunlight readable
|
| Keypad |
PCI compliant, 4*4 metal encryption PIN pad, 2*4 function keys, Dust
proof/water proof/vandal resistant, Support customizable panels, Support braille key
|
|
| Card Reader |
EMV certified, Motorized card reader; DIP card reader (opt.),Contact
less smart card reader/writer (opt.), Card retract (opt.), Card return on power failure
(opt.), Anti-skimming design (opt.)
|
|
| Printer | Graphic thermal receipt printer, E-journal printer, Journal printer (opt.) | |
| Light |
Top light, Device guide light, Status indicator light, LED electronic screen
light(opt.), Logo light(opt.)
|
|
| Others |
Bar code reader, Finger print reader, Customer awareness mirror, Speaker,
Audio jack
|
|
| Additional Module | Power amplifier board, USB extension board, Fan, Heater(opt.) | |
| Environment | Work Environment |
Temperature:-10℃~+65℃(+14℉~+149℉)(Indoor),-35℃~+75℃(-31℉~+167
℉)(Outdoor with heater)
Humidity: 20%~85%(No condensation)
|
| Storage Environment |
Temperature: -20℃~+85℃(-4℉~+185℉)
Humidity: 5%~90%(No condensation)
|
Company Introduction:
Herong Intelligent Equipment Co., Ltd. is a professional manufacturer integrating R&D, production, assembly, sales and service. Herong was established in 2016 and is located in Dongguan City, Guangdong Province, China.
We are proficient in various types of plastic molds and CNC hardware processing. We also specialize in vending machines, ATM/VTM machines, self-service kiosks, all other functional kiosks and their parts. Our factory has advanced mold and injection molding equipment, and has set up its own CNC machining center, which can perfectly undertake ATM accessories, auto accessories, household appliances, daily necessities, electronic products, medical equipment and other projects. We have professional equipment such as CNC punching machine, bending machine, laser cutting machine, spraying line, dust free workshop and all other related equipment. We can provide ODM/OEM service for customers. All the products we offer are certified by ISO9001, SGS, RoHs, CE, FCC, etc. For logistics, we can choose DHL, UPS, FedEx, sea or air, etc., it is up to our customers.
By continuously improving product quality and providing excellent service, we have maintained a good cooperative relationship with customers in more than 130 countries around the world.
Shipment:
RFQ:
Q:what’s the condition of your product?
A:Generally we can provide 4 conditions:new original,new generic,original used and original ref.
Q:Is your products have a warranty?
A:Yes.Every product has a warranty,normally it is 3 months.
Q:Do you have your own factory?
A: Of course yes.We have our own factory,we can build the molds and produce parts by ourselves.
Q:What’s the lead time of your product?
A:Normally it is 3-7 days after payment.The lead time is related to the quantity you ordered.
Contact Person: Miss. Zeki
Tel: +8613601126185
