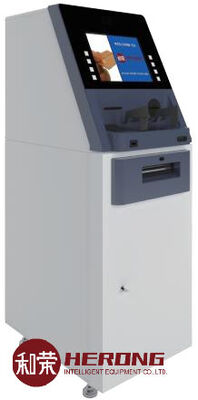

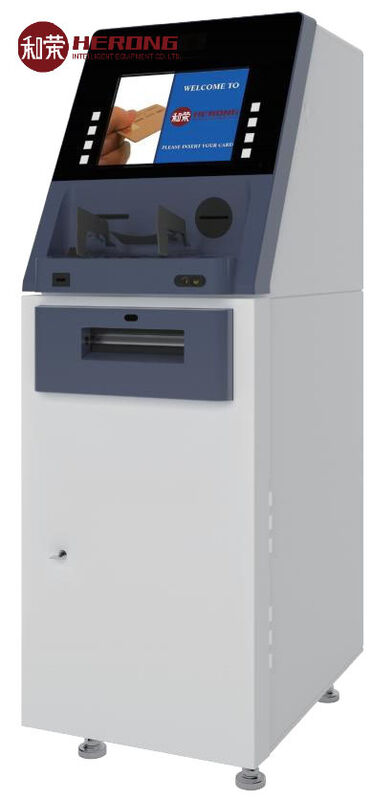

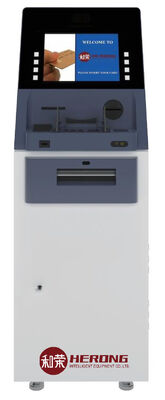

Reliable ATM-A06L-Z Complete ATM Machine for Banking & Retail Business

Reliable ATM-A06L-Z Complete ATM Machine for Banking & Retail Business

  • Reliable ATM-A06L-Z Complete ATM Machine for Banking & Retail Business
  • Reliable ATM-A06L-Z Complete ATM Machine for Banking & Retail Business
  • Reliable ATM-A06L-Z Complete ATM Machine for Banking & Retail Business
Reliable ATM-A06L-Z Complete ATM Machine for Banking & Retail Business
Product Details:
Place of Origin: China
Brand Name: HERONG
Certification: RoHS, CE, ISO, CCC
Model Number: Customized
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: competitive
Packaging Details: With standard packaging or according to customer's request
Delivery Time: 15-20 days
Payment Terms: L/C,T/T,Western Union
Supply Ability: 10000 pieces/month
Contact Now
Detailed Product Description
Highlight:

ATM machine for banking business

,

complete ATM machine with warranty

,

retail ATM vending machine kiosk

Standard: Compliant With Most Banking Standard Specifications, Including CEN/XFS, NDC, DDC, ISO8583, Etc. OS: Microsoft Windows 10
CPU: Support Intel Core I3/i5/i7 CPU RAM: Support Max. 16GB Memory
HDD: Support Max. 1 TB Hard Disk Communication: RJ45, WIFI, X.25, Etc.
Power: AC 220V~240V,50~60 Hz, Surge Protection, UPS(opt.) Cash Bag: 4 Cash Out Units, 1 Reject/retract Unit
Capacity: The Cash Out Unit Supports Up To 310 Mm Thick Banknotes, The Reject Unit Supports Max. 400 Banknotes, And The Retract Unit Supports Max. 100 Banknotes. Up To 60 Banknotes Per Transaction, 6-8 Banknotes/second, Single Reject Switch OCR: Support Banknote Serial Number Recognition (opt.)
Warranty: 90 Days,One Year,3 Months,2% Spare Parts,1 Year Product Name: ATM Machine,CDS6060,IR Touch Monitor,Hyosung 5600T Cash Cassette,Bitcoin ATM Cash Payment BitCoin Vending Machine
Color: Optional,Customized,grey,Blue Or Customize,Black Shipment: By Express/by Air/by Sea,Express,air,sea,DHL Fedex UPS TNT
Condition: New Original,used Or Refurbished,New Original&OEM&Refurbished Touch Screen Type: IR,SAW,IR / SAW /Capacitive Screen,IR Or SAW Touch Screen,capacitive/SAW/infrared Touch
Power Supply: AC110V-240V,110V,60HZ,220V Or Upon Clients,50Hz-60Hz Upon Clients Material: Plastic Material,mixed,Mental/palstic
Used In: ATM Machine,6622 ATM,Diebold Opteva 522 Cash Machine,Bank P/n: 9980235677,GRG H68,7310000226,Diebold Opteva 522
Supported Os: WindowsXP/Windows7/Windows8,Windows 7 / Windows 8,Win7 Or Win8 (test Version ),linux Logo: Custom Customer's Logo,Customize,OEM
Screen Size: 17",15inch 17inch Etc,22" Etc Upon Clients,19" Or Customize,19" Kiosk Cabinet Material: Cold Rolled Metal Sheet,Cold-rolled Steel,Cold-roll Steel Sheet Or Customized
Function: Deposit & Withdrawal,Payment Kiosk,Self-service Query And Advertising Player,card Dispenser,Bill Acceptor Kiosk Color: Blue,Blue Or Customized,Accept Color Customized),Black,White
Warranty Period: 12month For Components Since Shipment,1 Year (12 Monthes)


1. Company Information
  • Enterprise Name: HERONG GROUP; HERONG Intelligent Equipment Technology Co., Ltd.
  • Business Scope: Integrates R&D, production, assembly, sales, and service. Specializes in plastic molds, CNC hardware processing; undertakes projects including ATM parts, auto parts, household appliances, medical equipment, etc. Business sectors: ATM Spare Parts, Banking Machines, Software Solutions, Servers, E-business.
  • Global Presence: Cooperates with customers in over 130 countries worldwide.
  • Contact Details:
    • Emails: charles@hekiosk.com, kun@hekiosk.com
    • Mobile: +8618818806233, +8613601126185
    • WhatsApp: +33 659339530, +8618818806233
    • WeChat: +8618501126185, +8618818806233
    • Locations: Shenzhen, Dongguan, Guangzhou, China
2. Product Basic Information
  • Product Model: ATM-A06L-Z
  • Product Name: Automatic Teller Machine (ATM)
  • Core Advantages: Maximum online uptime, minimal maintenance, low repair costs; superior security; modular flexible design; humanized user experience.
3. Core Technical Specifications
Category Key Parameters
Software Compliant with CEN/XFS standard; supports protocols (NDC, DDC, ISO8583, etc.)
Controlling Unit OS: Microsoft Windows 10/Windows 11; CPU: Intel Core i5/i7 (supported); RAM: 8/16/32 GB (supported); HDD: Max. 1 TB Hard Disk
Communication RJ45, WIFI, X.25, etc.
Display 15" TFT Color LCD Touch Screen; optional Privacy Filter; Sunlight Readable
Power Supply AC 220v~240v, 50~60 Hz; Surge Protection; optional UPS
Security

- Safe: UL 291/CEN 1 certified

- Locks: Key Lock, Mechanical Combination Lock, Digital Lock

- Cameras: Binocular Camera (opt.), Facial Camera, Cash Slot Camera

- Sensors: Body Sensor, Door Sensor, optional Infrared/Smoke/Light Sensor

- Others: Explosion-proof Glass, PIN Pad Shield, optional DVR, Privacy Mirror

Dimensions Width: 500mm; Thickness: 750mm; Height: 1530mm
Weight Net Weight: 450kg; Backing plate + carton packaging: 470kg; Backing plate + wood packaging: 500kg
4. Core Functional Modules
  • Cash Dispensing Unit:
    • Cassettes: 4 Cash Cassettes, 1 Reject/Retract Cassette.
    • Capacity: Cash Cassette (supports up to 310mm thick banknotes) → 2500 banknotes/cassette; Reject Cassette → 400 banknotes; Retract Cassette → 100 banknotes.
    • Transaction Performance: Up to 60 banknotes per transaction; speed: 6-8 banknotes/second; single reject switch.
  • Card Reader:
    • Types: EMV Motorized Card Reader; optional DIP Card Reader/Contactless Card Reader.
    • Security: Optional Card Retract, Card return on power failure, Anti-skimming.
  • Recognition & Output:
    • OCR: Supports Banknote Serial Number Recognition.
    • Receipt Printer: Graphic Thermal Receipt Printer with E-journal.
  • Additional Modules: SIU Control Board, Fan, optional Heater; optional Bar Code Reader/Fingerprint Reader; Speaker, Audio Jack; EPP (PCI compliant, 4x4 metal EPP, 2x4 function keys, dust/water/vandal resistant, customizable layout + braille key).
5. Environmental & Reliability Indicators
  • Work Environment:
    • Temperature: Indoor → -10°C~+65°C (+14°F~+149°F); Outdoor (with heater) → -35°C~+75°C (-31°F~+167°F).
    • Humidity: 20%~85% (no condensation).
  • Storage Environment:
    • Temperature: -20°C~+85°C (-4°F~+185°F).
    • Humidity: 5%~90% (no condensation).
  • Lighting: Device Guidance Light, Status Indicator Light, optional LED Electronic Screen Light/Logo Light.
6. Product Advantages
  • Security: UL/CEN-compliant safe, EMV-compliant card reader, PCI-compliant EPP, facial recognition camera, exit slot camera.
  • Flexibility: Modular design; supports multiple optional modules for customization.
  • User-Friendly: Humanized design (chamfered corners, rear status indicator light); compatible with most SWITCH’s online services.

Company Introduction:


Reliable ATM-A06L-Z Complete ATM Machine for Banking & Retail Business 0


Herong Intelligent Equipment Co., Ltd. is a professional manufacturer integrating R&D, production, assembly, sales and service. Herong was established in 2016 and is located in Dongguan City, Guangdong Province, China.


We are proficient in various types of plastic molds and CNC hardware processing. We also specialize in vending machines, ATM/VTM machines, self-service kiosks, all other functional kiosks and their parts. Our factory has advanced mold and injection molding equipment, and has set up its own CNC machining center, which can perfectly undertake ATM accessories, auto accessories, household appliances, daily necessities, electronic products, medical equipment and other projects. We have professional equipment such as CNC punching machine, bending machine, laser cutting machine, spraying line, dust free workshop and all other related equipment. We can provide ODM/OEM service for customers. All the products we offer are certified by ISO9001, SGS, RoHs, CE, FCC, etc. For logistics, we can choose DHL, UPS, FedEx, sea or air, etc., it is up to our customers.


By continuously improving product quality and providing excellent service, we have maintained a good cooperative relationship with customers in more than 130 countries around the world.


Shipment:


Reliable ATM-A06L-Z Complete ATM Machine for Banking & Retail Business 1


RFQ:


Q:what’s the condition of your product?
A:Generally we can provide 4 conditions:new original,new generic,original used and original ref.

Q:Is your products have a warranty?
A:Yes.Every product has a warranty,normally it is 3 months.

Q:Do you have your own factory?
A: Of course yes.We have our own factory,we can build the molds and produce parts by ourselves.

Q:What’s the lead time of your product?
A:Normally it is 3-7 days after payment.The lead time is related to the quantity you ordered.
